LX, YH2E60TB21S

SKU
YH2E60TB21S
Specifications
Heat Pump Model YH2E
Dimension 46Hx38Wx34.25D
Tonnage 5
SEER2 14
Exact SEER2 14.3
Compressor Type Scroll
Compressor Configuration Two Stage
Max Fuse 50
Brand YORK
Series LX
Copper Line 3/8" x 7/8"
Parts Warranty Extended 10-Year Limited Parts Warranty
Warranty Notes All Warranties require online registration within 90 days of installation. Otherwise, Warranties revert to the 5-Year Compressor Limited Warranty or the 5-Year Parts Limited Warranty.
Brochure yh2ebrochure.pdf
Tech Guide yh2etech.pdf
User Guide yh2eusermanual.pdf
Installation Guide yh2einstallguide.pdf

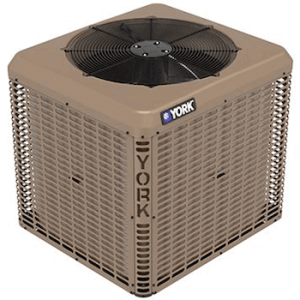

The YH2E models are the newest offering in our successful LX Series split system heat pump lineup. These outdoor units are optimized for the new DOE 2023 14.3 SEER2 / 7.5 HSPF2 Minimum Efficiency in all US Regions, and are specifically designed to be matched with YORK indoor coils, furnaces, and air handlers to provide a complete system solution.
