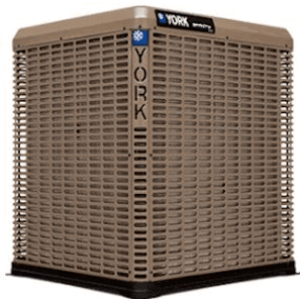

Affinity, YZV60B21S
SKU
YZV60B21S
| Heat Pump Model | YZV |
|---|---|
| Dimension | 46.5Hx38.25Wx34.5D |
| Tonnage | 5 |
| SEER2 | 20 |
| Exact SEER2 | 20 |
| Compressor Type | Scroll |
| Compressor Configuration | Modulating |
| Max Fuse | 50 |
| Brand | YORK |
| Series | Affinity |
| Copper Line | 3/8" x 1 1/8" |
| Parts Warranty | Extended 10-Year Limited Parts Warranty |
| Warranty Notes | Extended parts / compressor limited warranties require registration online within 90 days of installation. Otherwise, the warranty reverts to the standard warranty as published in the product warranty certificate. |
The Affinity Series YZV variable capacity heat pumps are the outdoor section of a high efficiency communicating heating and cooling system. They are designed as part of a matched system using an AVV air handler or variable speed communicating furnace with a CM coil. Both the matched CM coil and AVV air handler have factory mounted EEVs. The CM coils with factory mounted EEVs can also be matched with the variable speed MVC modular air handlers.
